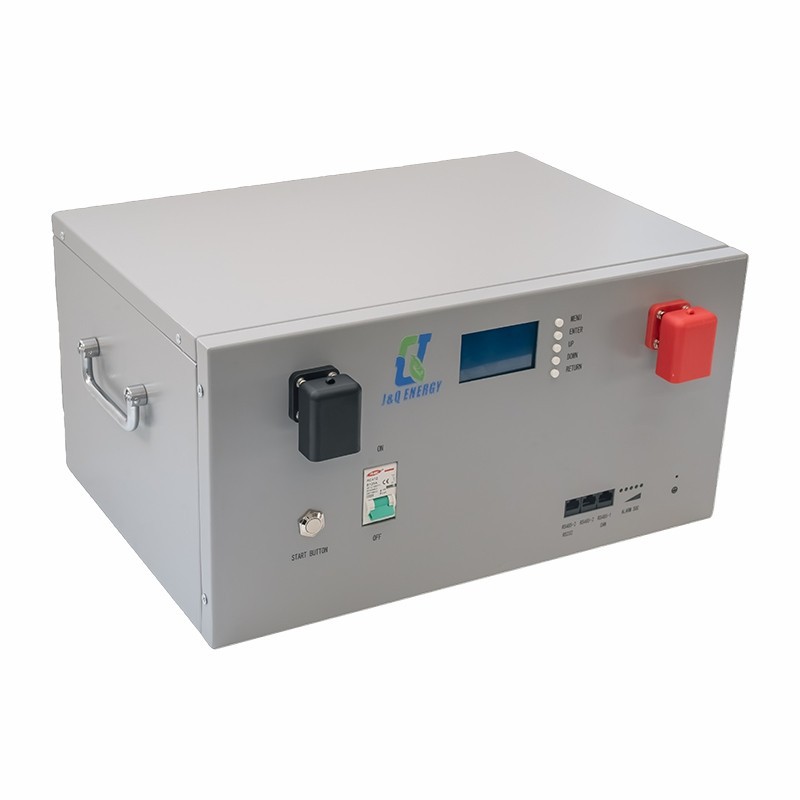

24 Volt Ups Power Supply is a LiFePO4 battery designed for low-voltage UPS backup power applications, with a rated specification of 38.4V / 93Ah / 3.57kWh.
The system supports RS-485 / RS-232 / CAN communication and up to 16 units in parallel for capacity expansion, increasing backup capacity and runtime.
Technical Specifications
|
Parameter |
Specification |
|
Product Name |
24 Volt Ups Power Supply |
|
Model |
JQ38490 |
|
Battery Type |
Lithium iron phosphate polymer cell / LFP |
|
Rated Voltage |
38.4V |
|
Rated Capacity |
93Ah |
|
Rated Energy |
3.57kWh |
|
Continuous Charge / Discharge Current |
45A / 90A |
|
Maximum Charge / Discharge Current |
90A / 150A |
|
Charging Temperature |
-20℃ ~ 45℃ |
|
Discharging Temperature |
-40℃ ~ 65℃ |
|
Cycle Life |
6000 cycles |
|
Communication |
RS-485 / RS-232 / CAN |
|
Parallel Expansion |
Supports up to 16 units in parallel |
|
AC Output Power |
Determined by the matched UPS / inverter / PCS |
|
Warranty |
3 years |
|
Customization |
OEM / ODM supported |
Quality Control
- Quality system: Production, inspection, and shipment control follow ISO 9001 procedures.
- Battery safety and transport: UN38.3, MSDS, and available third-party test reports can be checked for the project before shipment.
- Market certificates: For EU, North American, or industrial UPS use, CE, RoHS, IEC 62619, UL 1973, and the applicable certificate scope should be confirmed before placing the order.
Customization Capability
- Specification customization: voltage, capacity, discharge current, backup runtime and number of parallel units.
- Communication adaptation: RS-485 / RS-232 / CAN interfaces and protocols.
- Structural customization: dimensions, installation method, terminal position and wiring harness configuration.
- OEM / ODM: labels, packaging, documentation and batch delivery.
Honor and qualification
Frequently Asked Questions
Can samples be provided first?
-
Samples can be provided for customers to confirm product specifications and functions.
What is the minimum order quantity (MOQ)?
-
The minimum order quantity is 10 sets.
What is the lead time for standard products?
-
Usually about 30 days. Repeat orders can usually be completed about one week earlier than the first order.
What trade terms and payment currencies are supported?
-
EXW / FOB are supported. Payments can be accepted in RMB or USD.
