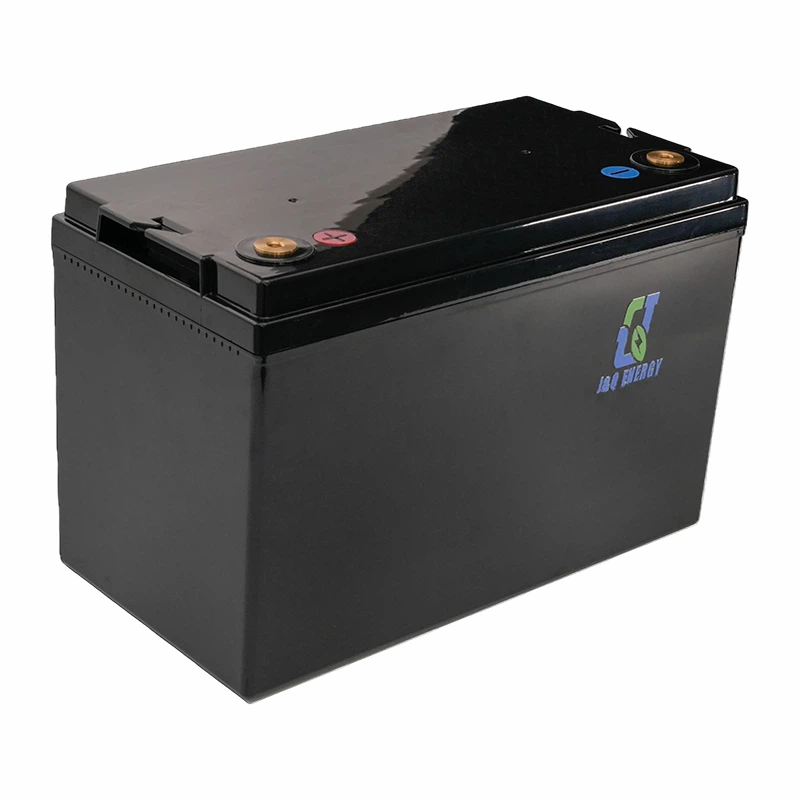

Maintenance-Free LiFePO4 Lead-Acid Swap Battery

Maintenance-Free LiFePO4 Lead-Acid Swap Battery
Details:
The JQ51231Q is a maintenance-free lithium iron phosphate (LiFePO₄) replacement battery designed to upgrade high-voltage lead-acid systems in heavy-duty equipment. Equipped with J&Q ENERGY LiFePO₄ polymer cells, it delivers stable high-voltage output, far surpassing traditional lead-acid batteries.
Send Inquiry
Download
Description
Technical Parameters

Product Overview





Maintenance-Free LiFePO4 Lead-Acid Swap Battery is a 51.2V 31Ah LiFePO4 lead-acid replacement battery for upgrading high-voltage lead-acid systems. With 1.587kWh rated energy, 11.8kg weight and Bluetooth communication, it is suitable for industrial equipment, high-voltage emergency systems and equipment retrofit projects.



Technical Specifications

Parameter

Content

Model

JQ51231Q

Rated Voltage

51.2V

Rated Capacity

31Ah

Rated Energy

1.587kWh

Battery Type

Lithium Iron Phosphate Polymer Cell (3.2V/31Ah)

Overcharge Voltage

58.4V

Cut-off Voltage

40V

Continuous Charge Current

15A

Maximum Charge Current

30A

Continuous Discharge Current

30A

Maximum Discharge Current

60A

Charging Temperature

-20℃ ~ 45℃

Discharging Temperature

-40℃ ~ 65℃

Storage Temperature

-10℃ ~ 35℃

Dimensions

333 × 176 × 221mm

Weight

11.8kg

Packaging Size

403 × 246 × 296mm

Cycle Life

6000 cycles

Communication

Bluetooth

Warranty

3 years

Brand

J&Q ENERGY

Customization

Supported



1eded386-4a03-4a9e-ba0f-bc254e3f2e7c

Key Features



  • 51.2V high-voltage replacement: suitable for high-voltage lead-acid battery system upgrades.
  • Easy maintenance: Bluetooth communication makes operating status viewing convenient.
  • Long cycle life: 6000 cycles is suitable for long-term operating equipment.
  • Wide-temperature discharge: -40℃ to 65℃ discharge range is suitable for complex environments.

Battery System and BMS



This model uses a 51.2V 31Ah LiFePO4 battery system. The BMS monitors battery status and works with the 58.4V overcharge limit, 40V cut-off voltage, and 30A continuous discharge current to protect the system.

eab6512a-fabb-44b8-8f8b-b5ef25e3edd3



18b7eb06-0b45-4468-80be-fc343d61f6f5

Charging and Installation



Use a charger made for 51.2V LiFePO4 batteries, and check the charging current, discharge current, installation space, and wiring method before installation. For batch replacement, provide the original lead-acid battery specs and the equipment working environment in advance.

Customization Capability



  • Specification customization: 51.2V high-voltage replacement platform, capacity, charge/discharge current and backup runtime.
  • System adaptation: industrial equipment, high-voltage emergency systems and equipment retrofit projects.
  • Structural options: terminals, wiring harnesses, installation space and connection method.
  • Branding and packaging: OEM / ODM labels, appearance, packaging and batch supply.
39d7e604-ea42-43a3-ae80-139f416bf59e



product-536-758



Quality Control
  • Quality system: Production, inspection and batch supply management are carried out according to the ISO 9001 quality management system.
  • Certification documents: UN38.3, MSDS and third-party test documents can be confirmed according to 51.2V high-voltage replacement project requirements.
  • Shipment documents: specification sheet, label information, packaging documents and batch shipment inspection records can be provided as required.


MSDS
UN383
product-545-780
UN383
product-551-777



Frequently Asked Questions



Is this battery suitable for high-voltage equipment?

-

Yes. It is suitable for high-voltage lead-acid system upgrades on the 51.2V voltage platform.

Is rewiring required?



-

Whether connection changes are required depends on the original equipment terminals, wiring harness and control system. Confirm this before procurement.

What information can the Bluetooth function display?



-

It can be used to view battery level, charging status and discharging status, making maintenance and after-sales checks easier.

How should the charger be matched?



-

Choose charging equipment compatible with 51.2V LiFePO4 battery systems, and check the 58.4V overcharge voltage and 30A maximum charge current.

What applications is this battery suitable for?



-

It is suitable for industrial control equipment, precision instruments, outdoor high-voltage emergency systems and high-voltage equipment battery replacement.
